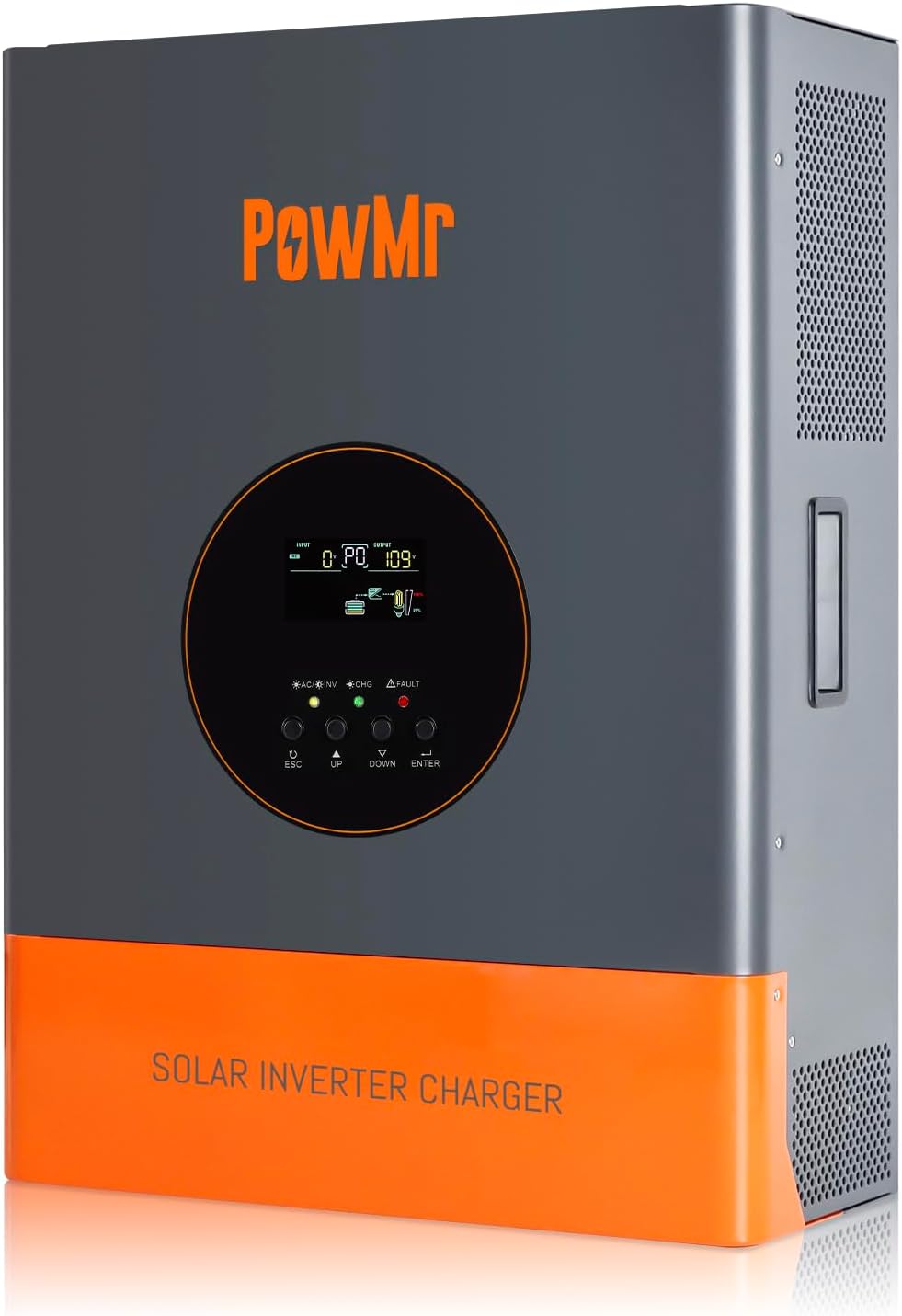

PowMr 10,000W Hybrid Inverter Review: Is This the “End Boss” of Off-Grid Power?
Enter the PowMr Split Phase 10,000W Hybrid Solar Inverter. This isn’t just a piece of equipment; it’s a statement. It’s like putting a V8 engine into your solar setup. With a massive 10KW continuous output and a peak surge that could probably jump-start a space shuttle (30,000W!), this hybrid inverter is designed for those who don’t want to compromise. Whether you’re building a high-end mobile workshop or a luxury off-grid cabin, let’s see if this “blue beast” lives up to the hype.
The Muscle Behind the Magic: Key Features

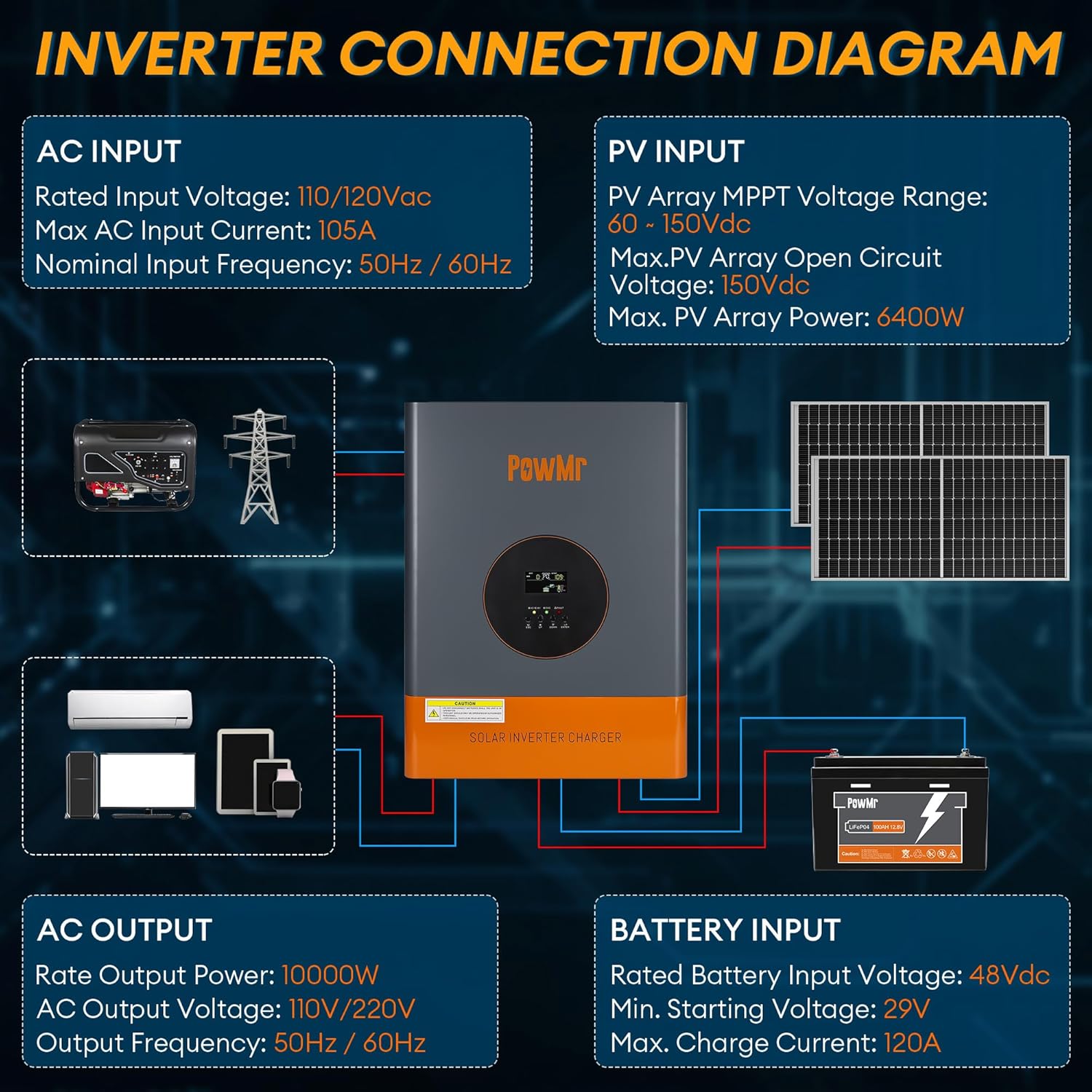

This PowMr unit is a “Hybrid,” which in the solar world means it’s a multi-tasking genius. It combines an inverter, a battery charger, and a solar MPPT controller into one box.

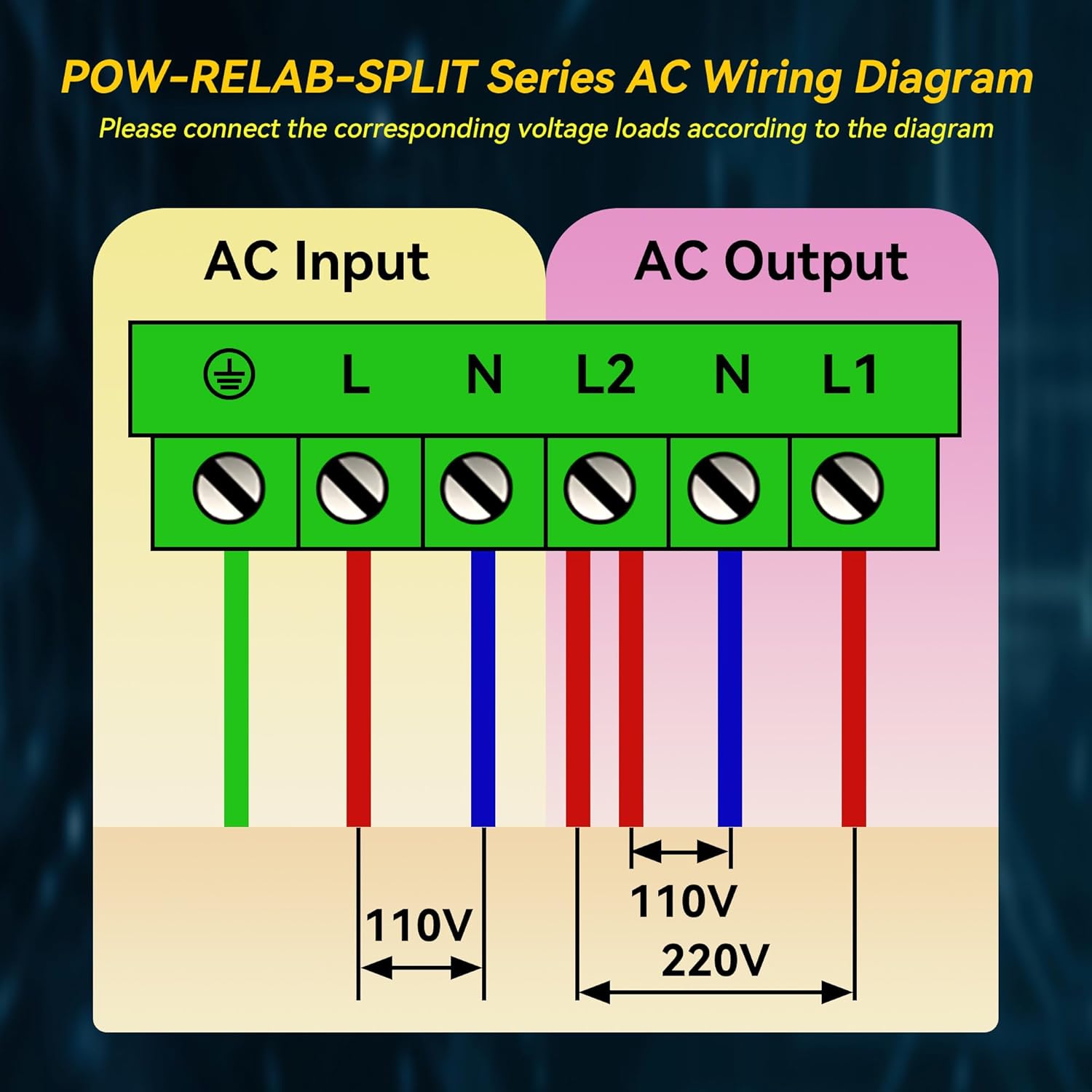

- Split Phase Power (110V/220V): Unlike basic inverters, this can run your standard gadgets AND your heavy 220V appliances simultaneously. No more choosing between toast and air conditioning.
- 120A MPPT Charge Controller: It can suck up juice from your panels at a staggering rate. With a max PV input of 6400W, you can practically charge your batteries while the sun is just thinking about rising.
- 30,000W Peak Power: Induction motors (like in pumps and saws) need a huge kick to start. This inverter provides that kick without breaking a sweat.
- Battery Agnostic: Whether you’re old school with Lead-Acid or living in the future with Lithium (LiFePO4), this unit has the charging profiles to keep your “fuel tanks” healthy.
PowMr 10KW Technical Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 10,000 Watts (10KW) |
| Peak Surge Power | 30,000 Watts (5 seconds) |
| Battery Voltage | 48V DC |
| Output Voltage | 110V/120V & 220V/240V AC (Split Phase) |
| Max Solar Input (PV) | 6,400 Watts |
| MPPT Charging Current | 120 Amps |
| Waveform | Pure Sine Wave |
How Does It Stack Up?
In the heavy-duty tier, PowMr competes with brands like Victron and Growatt. While Victron is the “Rolls Royce” (and priced like one), PowMr is the “Heavy Duty Truck”—it gets the job done for a fraction of the cost. If you’re looking for lighter, more portable options for quick trips, check out the gear at GoOutdoor.us.
| Feature | PowMr 10KW Hybrid | Growatt SPF 6000T | Typical 3000W Inverter |
|---|---|---|---|
| Continuous Power | 10,000W | 6,000W | 3,000W |
| PV Input | 6,400W | 5,000W | Approx. 1,000W |
| Weight | Heavy (Stationary) | Heavy | Portable |
| Best For | Full Cabins / Workshops | Medium RVs / Cabins | Camping / Laptops |
Ready to Go Full Power?
Stop worrying about overloading your system. Get the PowMr 10KW and run everything at once.
How to Keep Your “Blue Beast” Alive for Years
A 10KW inverter handles a lot of current. Heat is your only real enemy here. To ensure it lasts a decade:
- Ventilation is Non-Negotiable: Don’t stick this in a tiny, unventilated closet. It needs at least 6-8 inches of clearance on all sides for the fans to do their job.
- Torque the Terminals: Use a torque wrench on your battery connections. A loose 48V connection at 200 amps can melt metal. Check them every few months if you’re in a vibrating environment like a large motorhome.
- Firmware Hygiene: PowMr occasionally releases updates for their MPPT algorithms. Keeping the software fresh ensures your batteries get the best “diet” of electrons.
Optimal Operating Conditions
To hit that 98% efficiency mark, try to install the unit in a dry environment between 10°C and 40°C. If you are in a high-humidity area, an enclosure with a desiccant or small heater is a smart move to prevent internal condensation.
For more inspiration on building high-capacity off-grid stations, visit our resources at CampingSolar.us.
Top 3 Companion Products for the PowMr 10KW
- 48V 100Ah/200Ah Lithium (LiFePO4) Battery Bank: You need a massive “tank” to feed this beast. Don’t starve it with a single lead-acid battery.
- High-Voltage PV Combiner Box: With a 6400W input limit, you’ll likely have multiple strings of panels. A combiner box with fuses is a safety must.
- Remote Wi-Fi Module: PowMr has a plug-and-play Wi-Fi dongle that lets you monitor your power usage from your phone while you’re sitting by the campfire.
Frequently Asked Questions
Q: Is this unit too loud for a small camper?
A: It has powerful fans. Under heavy load, it sounds like a server rack. If you’re a light sleeper, mount it in an external bay or a sound-dampened cabinet.
Q: Can I run my 220V well pump with this?
A: Yes! That is exactly what the Split Phase design is for. It handles 220V/240V heavy machinery with ease.
The Verdict: Is It Worth It?
The PowMr 10,000W Hybrid Inverter is for the person who wants to replicate “city life” in the middle of the wilderness. It’s powerful, versatile, and surprisingly affordable for the specs it offers. If you have a 48V battery system and big power dreams, this is your ticket to freedom.
